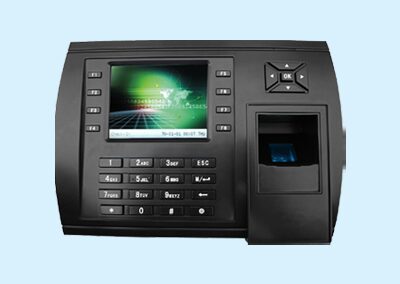

US905 Series Time & Attendance Terminals

Flexible Time Collection Terminals

US905 TIME & ATTENDANCE TERMINAL Features

• This time clock series goes beyond check-in and check-out for sites with an excellent user experience thanks to its intuitive design and logical flow. It comes with a 3.5’’ TFT LCD Multimedia Color Screen and an integrated RFID reader
• Maximum security for your firmware and files is guaranteed by using encryption, Data Backup, and retrieval
• The US905 Series provides fast identification speed, with the option of advanced access control capabilities
• Wi-Fi- as a standard feature on all devices
• Hardware-level clock authentication
• Support for local and external data/system backup
• User-level duplicate punch prevention
• Tip entry support
• Multiple-level job code support
• Customizable user access control privileges
• Web server support as a standard function
• Automatic status key switch
• Self-Service API
• 9 Digits User ID
• Daylight savings time
• Customizable bell schedules
• Private or public SMS messaging support
• USB-host
• User attendance search
• PUSH and Standalone SDK compatibility with TFT 2.0
• Enhanced encryption system for data integrity and security
• Enhanced flexibility on attendance and function keys

Hardware Specifications

Capacity

ID Cards: 10,000
Transaction Storage: 200,000
Finger Templates: 8,000 (1:1 or 1:N)

Fingerprint Sensor

ZK2750P

Communication

Ethernet (10/100), Serial RS232/RS485,
USB (host & client), Wi-Fi

Environment

Operating Temperature: 32°F -113°F (0°C- 45°C)
Operating Humidity: 5% – 80%

Power

12V DC 3A

Optional: 12V POE injector
Optional: 12V Battery Backup

Display

3.5” TFT Color Screen

Dimensions

Width: 8.1 in. (20.5 cm)
Height: 5.7 in. (14.5 cm)
Depth: 1.9 in. (4.75 cm)
Weight: 1.15 lbs. (0.52 kg)

Supported Devices

S905-ID: Fingerprint and standard RFID prox reader
S905-HID: Fingerprint and standard HID prox reader
S905R: Standard RFID prox reader
S905R-HID: Standard HID prox reader
